DJI Transmission Combo

Name: DJI Transmission Combo
Brand: Dji
SKU: dji tranmisson combo
Price: 172990.0000 INR
Availability: InStock

Be the first to review this product

Price: ₹ 1,72,990

Old price: ₹ 1,67,990

Brands: Dji

SKU: dji tranmisson combo

Delivery date: 3-5 days

Availability: In stock

Chat with Expert Call Now

Qty:

+ -

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencie

Products From Same Category

Hollyland Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set (Enhanced)

₹ 25,499 ₹ 36,990

255 Cashback Points

Hollyland Mars 400S PRO SDI/HDMI Wireless Video Transmission System

₹ 39,490 ₹ 50,000

395 Cashback Points

FEELWORLD LIVEPRO L1

₹ 25,990 ₹ 40,000

260 Cashback Points

Overview
Product Highlights
IN THE BOX
MORE INFO
Reviews

Transmit high-definition video over 3 miles (line-of-sight) from your DJI drone or gimbal gear for monitoring with this Transmission Combo from DJI. The combo includes a transmitter and a monitor/receiver that transmits up to 1080p60 video using the highly efficient O3 Pro transmission technology via Wi-Fi 2.4 and 5 GHz frequencies. Optional high-gain antennas can be purchased to boost the signal quality and distance. The high-bright monitor features 1500 cd/m² brightness, 1920 x 1200 resolution, and a touchscreen display.

The system supports automatic frequency hopping to find the strongest signal, and it operates using AES 256 encryption to protect your video from prying eyes. It allows you to transmit simultaneously to two receivers in control mode, and in broadcast mode, it can transmit to unlimited receivers with a slightly lower performance. Control mode allows you to control your gimbal or camera using the touchscreen or via physical gestures using the built-in gyroscopic sensor.

The units can be powered via a WB37 battery or its DC power input, or they can be powered directly from a DJI gimbal such as the Ronin 2 or RS 3. The monitor provides multiple imaging tools such as frame guide, waveform, and false color, and it allows you to import custom LUTs.

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
By mounting high-gain antennas, transmission capability is further boosted.

One Transmitter with Multiple Receivers for Coordinated Shooting

Two transmission modes are available.
In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.

Encrypted Transmission

DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage

Transmitter & High-Bright RX Monitor Kit
Transmit 1080p60 Video over 3 Miles LoS
HDMI/3G-SDI Input / Output
7" 1920 x 1200 Touchscreen Display
Gyroscopic Sensor to Control Gimbals
O3 Pro Video Transmission Technology
AES 256-Bit Encryption
Power via WB37 Intelligent Batteries
Works with Ronin 2 / RS 3 Pro Gimbals
Custom LUTs, Built-In Image Tools

DJI Transmission Combo
DJI Wireless Video Transmitter
High-Bright Remote RX Monitor
Remote Monitor Hood
WB37 Battery Adapter (TX)
2 x WB37 Intelligent Battery
WB37 Battery Charging Hub (USB Type-C)
L-Series Battery Adapter (TX)
L-Series Battery Adapter (RX)
USB Type-C to LEMO Power Cable
RS Gimbal Mounting Plate
USB Type-C Cable
SDI Cable
DC Power Cable
DC to D-Tap Power Cable
Installation Toolkit
2 x Antenna

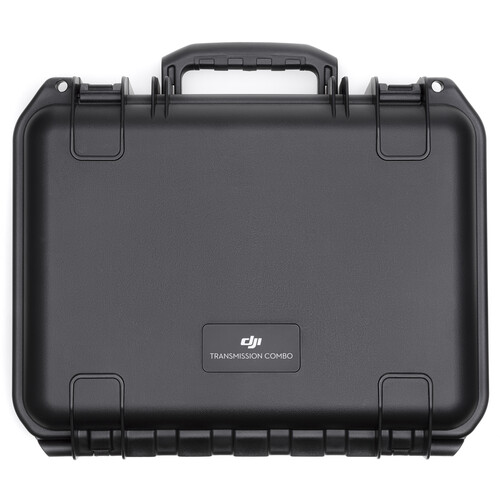

Protector Case
Limited 1-Year Manufacturer Warranty

Display

Panel Type	Receiver: LCD
Display Size	7.0" / 17.8 cm
Display Size	Receiver: 7.0" / 17.8 cm
Resolution	Receiver: 1920 x 1200
Aspect Ratio	Receiver: 16:10
Touchscreen	Yes
Image Controls	False Color, Focus Peaking, Screen Markers, Waveform, Zebra

Inputs / Outputs

Video I/O	Transmitter: 1 x HDMI 1.4 Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Input Receiver: 1 x HDMI 1.4 Output Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio	HDMI/SDI
Audio I/O	Receiver: 1 x 1/8" / 3.5 mm Headphone Output
Power	Transmitter/Receiver: 1 x Barrel Input
Other I/O	Receiver: 1 x USB-C 2.0 Input
Media/Memory Card Slot	Single Slot: microSD/microSDHC
Encryption	256-Bit AES

Wireless

Wireless Range	3.7 Miles / 6 km (Line-of-Sight)
# of Channels	23
Channel Bandwidth	40 MHz
Frequency Range	Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz
Latency	68 ms
RF Power	< 33 dBm
Wi-Fi	Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth	None
Mobile App Compatible	No *As of February, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format	HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Audio Format	16-Bit 48 kHz PCM Audio
Wireless Video Compression	Compressed
Timecode Support	Yes

Power

DC Input Power	6 to 18 VDC
Battery Type	Transmitter/Receiver: 1 x L-Series (Interchangeable Mount)
Power Consumption	Transmitter/Receiver: 11 W

Mounting

Cold Shoe

Environmental

IP Rating	None
Environmental Protection	None
Certifications	CE, FCC *as per Manufacturer
Operating Temperature	22 to 77°F / -10 to 45°C

General

Dimensions	Transmitter: 5 x 3.4 x 1" / 127 x 87 x 26 mm Receiver: 8.4 x 5.3 x 2" / 213 x 135 x 51 mm
Weight	Transmitter: 12.3 oz / 350 g, Excluding Antenna Receiver: 1.6 lb / 727 g, Excluding Antenna
