Vanguard ALTA PH-114V Magnesium Alloy Video Head

Vanguard ALTA PH-114V Magnesium Alloy Video Head

₹ 6,590
₹ 7,990
Brands: Vanguard
SKU: ALTA PH-114 V
Delivery date: 3-5 days
Availability: Out of stock
/safe-checkout-seal
Vanguard ALTA PH-114V Magnesium Alloy Video Head
.

BRAND NEW ITEM

.

GST INVOICE AVAILABLE

.

BRAND WARRANTY

.

CUSTOMER SUPPORT

.

Easy Returns & Exchanges

.

Authentic Products

.

100% Secure Payment

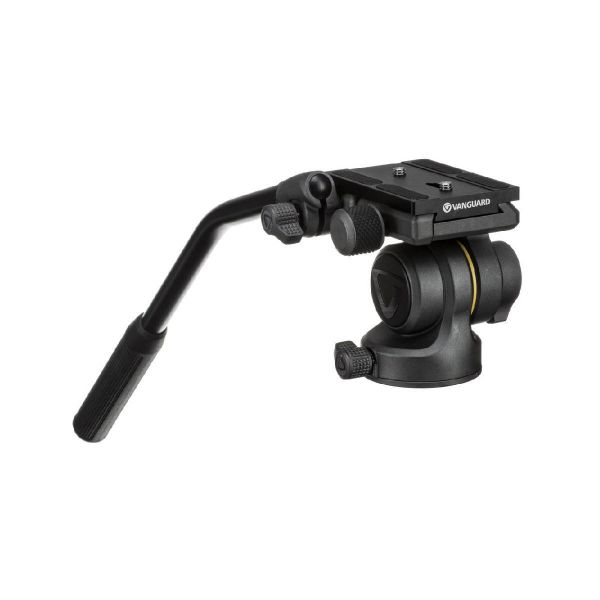

The Vanguard ALTA PH-114V Magnesium Alloy Video Head supports cameras and accessories weighing up to 17.6 pounds. The Arca-type camera plate, with one sliding and one fixed screw, slides within the top of the tripod head's camera platform enabling precision balance adjustments. The head itself features a 58mm diameter flat base with a 3/8"-16 receiver, allowing you to mount it to a wide variety of camera supports such as tripod legs, sliders, and half ball leveling adapters.

The head features fluid action for smooth pans and tilts, with a tilt range of -45 to 90°, and 360° of pan. The head incorporates a bubble level and pan handle rosettes on the left and right sides (only one handle is included).

Products specifications
Base Type3/8"-16 Female Thread
Quick ReleaseWith Quick Release
BrandVanguard
Special FeaturesFluid
Maximum Load Capacity10 to 20 lbs
Write your own review Close Review Form
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
  • Vanguard ALTA PH-114V Magnesium Alloy Video Head
  • Pan Handle
  • QS-61 Camera Plate



The ALTA PH-114V is a lightweight video head with fluid action movements, incorporates an Arca-type quick release system and has an ergonomic long handle for smooth pans and tilts. Four lock/unlock knobs are positioned ergonomically to provide easy access for setting up the pan bar, locking your gear securely, and providing adjustments for pans and tilts. The Arca-type quick release plate QS-61 is 80mm/3.2in. long has 2 screws (1 static, 1 sliding) and allows for gear to be positioned to move forward or back on the video head easily allowing you to balance gear on the top of the tripod!  The second screw acts like an anti-twist pin.

The built-in rosettes along either side of the head allow for mounting of one pan bar or if desired a second pan bar can be added for additional control.

Camera Plate
Camera Plate FeaturesQuick Release
Camera Plate TypeArca-type
Tripod Platform
Base Mount3/8"-16 Female
Pan & Tilt
Drag ControlFixed
Vertical Tilt+90° to -45°
Physical
MaterialMagnesium
Bubble Level1
Base Diameter2.28" / 5.8 cm
Weight1.4 lb / 0.6 kg
