Vanguard Abeo Plus 323AV Aluminum Tripod with PH-123V Pan Head

Vanguard Abeo Plus 323AV Aluminum Tripod with PH-123V Pan Head

₹ 18,990
₹ 22,990
Brands: Vanguard
SKU: Abeo Plus 323 AV
Delivery date: 3-5 days
Availability: Out of stock
/safe-checkout-seal
Vanguard Abeo Plus 323AV Aluminum Tripod with PH-123V Pan Head
.

BRAND NEW ITEM

.

GST INVOICE AVAILABLE

.

BRAND WARRANTY

.

CUSTOMER SUPPORT

.

Easy Returns & Exchanges

.

Authentic Products

.

100% Secure Payment

The Abeo Plus 323AV Aluminum Tripod with PH-123V Pan Head from Vanguard is a reliable aluminum alloy tripod equipped with a magnesium alloy PH-123V Video Pan Head.

A unique Quick Height Adjustment center column allows you to change the height of the tripod quickly and with a minimum of effort. Just flip the lever lock open, raise or lower the central column to the desired height, and flip the lock closed. Tension Adjustable Leg Locks provide secure and rapid locking of the legs, and the tension level can be adjusted according to your personal preference. Each leg can adjust independently to 25º, 50º, or 80º angles and with the included short column adapter installed and legs fully spread, the tripod flattens as low as 8.6" (220mm) for low-angle shooting. The maximum extendable height is 75" (190 cm). The rubber feet on the legs have an angled design for solid grip on floors and flat earth and built-in threaded spikes give you support on soft earth or ice. An included set of snow/sand shoes offer stability on sand, snow or other soft ground. Thick foam on the upper part of each leg makes the tripod easy and comfortable to handle in cold or wet weather and a stabilizer hook extends from the bottom of center column to add weight for further stability.

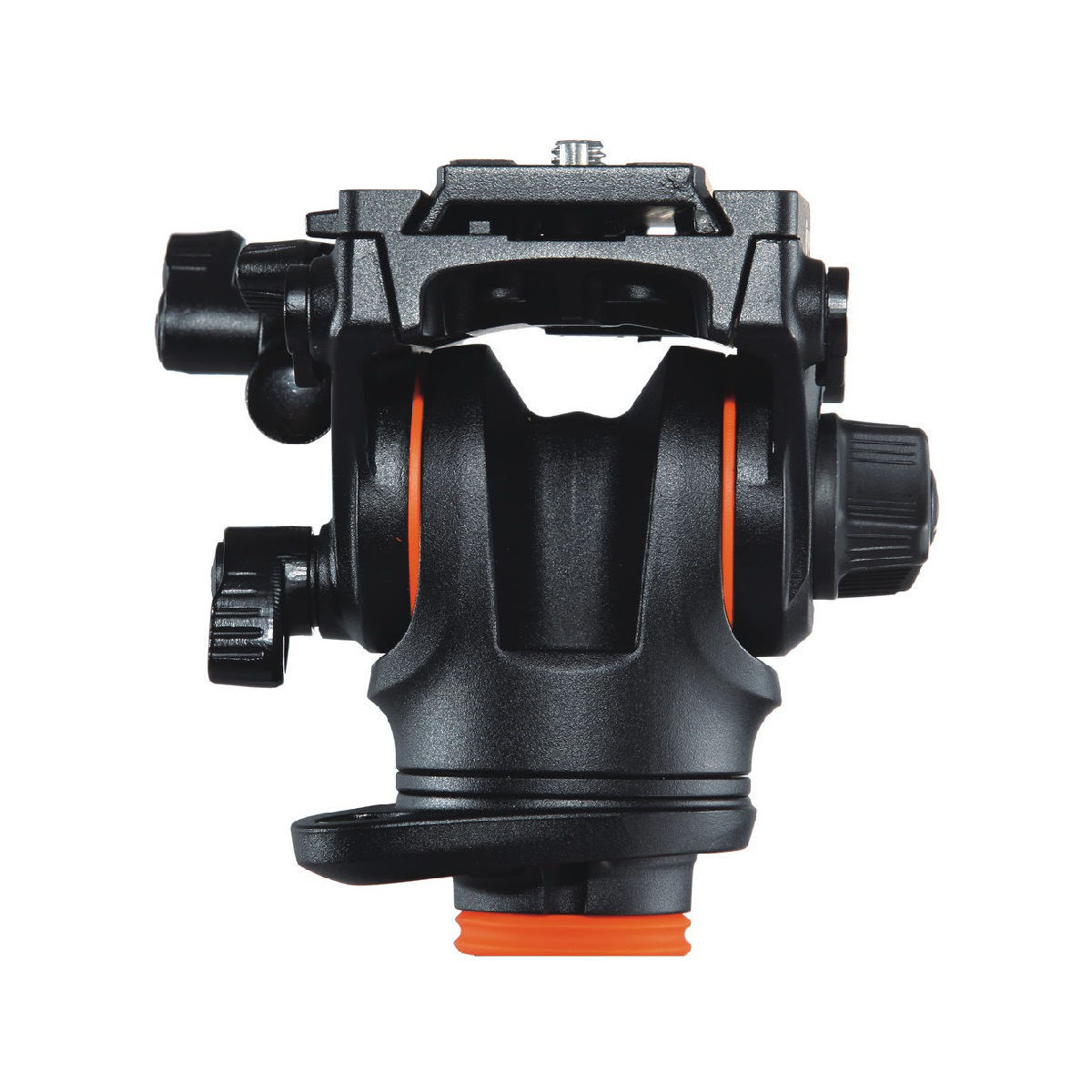

The PH-123V fluid video head is made of magnesium alloy with a spring-loaded counterbalance system for camera support and balance. Front to back movement can be fine tuned for optimal center of gravity positioning and a large, quick-shoe safety release button allows for easy yet secure camera removal. Drag tension offers smooth pan and tilt functions and a long handle is provided for better control of heavier cameras.

  • Aluminum alloy legs for maximum stability
  • Quick Height Adjustment center column locking mechanism lets you instantly position your camera along the vertical axis.
  • Legs adjust individually to 25°, 50°, and 80° angles with a quick release button
  • Angled rubber feet for solid grip on floors, convertible threaded spikes for terrain or ice, plus a set of snow/sand feet for soft, unstable terrain
  • Quick-flip leg locks enable fast setup and are tension adjustable
  • An included short column adapter allows the tripod to extend downward for low angle shots. The minimum height is 8.6" (22 cm).
  • A stabilizer hook hangs from base of the center column and holds weights or sandbags to stabilize the tripod. Accessory items can also be conveniently hung from the hook.
  • Thick foam on legs enable a secure grip in hot, cold, and slippery weather
  • The PH-123V fluid video head is made of rigid magnesium alloy with a closed-type construction and a spring-loaded, counterbalance system to precisely balance the weight of the camera.
  • Adjustable drag tension provides smooth pan and tilt functions
  • A large quick-shoe safety release button for easy removal of camera and front-to-back movement fine tuning capabilities for optimal center of gravity positioning.
  • Contains a long handle for better control of heavy cameras and 1/4" and 3/8" attachment threading.



Products specifications
Maximum Extended Height65.1" to 75"
Weight7.1 to 10 lbs
Leg Sections3
Maximum Load Capacity13.1 to 15 lbs
Closed Length30.1" to 35"
Kit StylePremium Kit
ColorBlack
Tripod HeadPan/Tilt Head
MaterialAluminum
Quick ReleaseIncludes QR
SpreaderNone
TypeStill & Video
BrandVanguard
Write your own review Close Review Form
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
  • Vanguard Abeo Plus 323AV Aluminum Tripod with PH-123V Pan Head
  • Vanguard PH-123V Magnesium Alloy Video Head
  • Short Column Adapter
  • 3 x Snow/Sand Shoes
  • Carrying Case
  • Multi-purpose Wrench



ABEO Plus 323AV video tripod pairs our unwavering ABEO Plus legs with a fluid, two-way video pan heads for steady, smooth movements and an impressive loading weight. Abeo Plus delivers the support you demand with the versatility and ease of use you deserve. Its unique Quick Height Adjustment centre column locking mechanism lets you instantly position your camera along the vertical axis with minimal effort. Simply flip the large lever lock open, adjust the central column to the desired height and flip the lock back into place, securing your gear into position. Thanks to its Tension Adjustable Leg Locks, Abeo Plus' legs will always stand strong, keeping your gear safe and secure for years to come. Over time, normal wear and tear can start to take a toll on ordinary flip locks, but with Abeo Plus, simply tighten the adjustable leg locks to the desired tension for peak performance. Versatile feet ensure the ideal solution for any surface. Uniquely angled rubber feet for the perfect grip in studio or on hard ground; threaded spikes to dig into and hold firm on soft terrain or ice; and a bonus set of snow and sand shoes to stand tall, even in wintery conditions or on the beach. PH-123V fluid video head with counterbalance system and adjustable drag tension provides incredibly smooth pan and tilt functions and rigid magnesium, closed-type construction for steady videography with HD camcorders and add-ons. Spring loaded, adjustable counterbalance ensures the perfect amount of balance for the weight of the camera being used. PH fluid video head features a large quick shoe safety release button and front-to-back movement fine tuning capabilities for optimal centre of gravity positioning. Built to support more than 17.5 pounds, PH fluid video head also has a long handle for use with heavy equipment PH fluid video heads also feature a ¼-inch and 3/8-inch attachment interface.

General
Load Capacity13.2 lb (6 kg)
Maximum Height75" (190.5 cm)
Maximum Height w/o Column ExtendedNot specified by manufacturer
Folded Length30.5" (77.6 cm)
Weight8.0 lb (3.63 kg)
Head
Head TypePH-123V Pan Head
Quick ReleaseYes, QS-67
Swivel360º
Bubble LevelYes, 1
Legs
MaterialAluminum alloy
Leg Stages/Sections3
Leg Lock TypeFlip-lock
Spiked/Retractable FeetYes, rubber feet convert to spikes
Independent Leg SpreadYes
Leg Tube Diameters1.25" (32 mm)
Center BraceNo
Center Column
Center Column TypeRapid
Center Column Sections1
Short Column Adapter Dimensions3.25 x 0.8" (82.5 x 20 mm)
