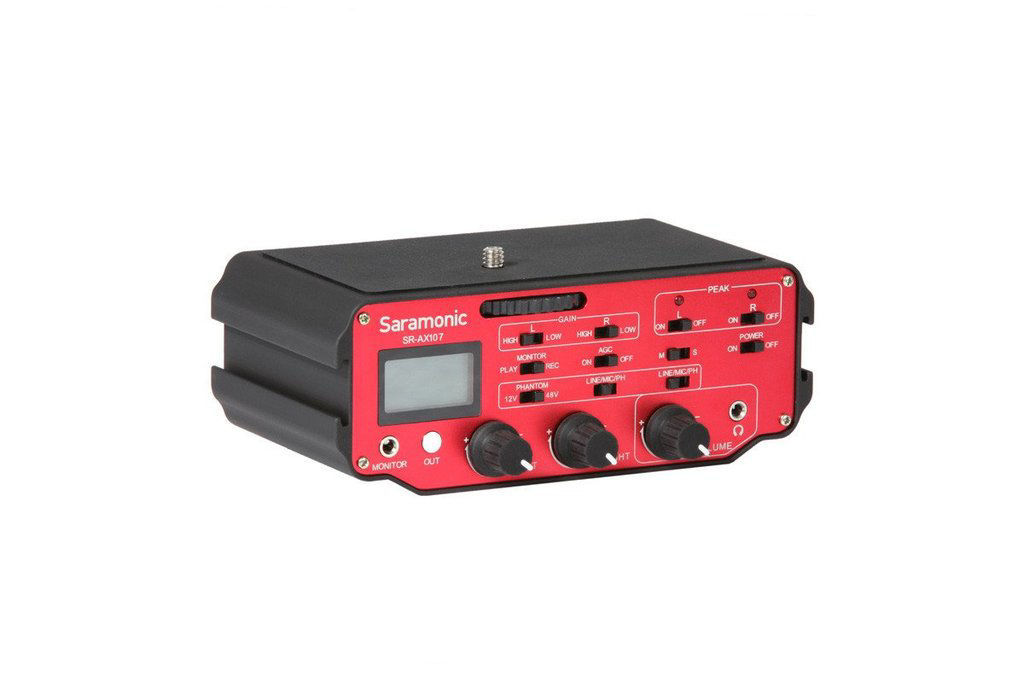

Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer for DSLRs

Saramonic SR-AX107 2-Channel XLR Audio Adapter with Isolation Transformer

When you need to connect multiple XLR microphones or line-level signals to a camera, the Saramonic SR-AX107 is a solution that offers unrivaled versatility. Every feature you need to capture top-notch sound into your camera is provided. Two built-in mic preamps provide clean, broadcast-quality sound. The SR-AX107 features an isolation transformer providing pure, noise-free sound and the output signal can be adjusted by the level controls for optimum recording. A backlit LCD display makes it easy to view your audio meters and settings, letting you visually monitor input levels in real-time. Dedicated left and right Peak switches allow you to turn on/off the red overload LED signal indicators.

Maximum Mic Input Level: 0 dB on the Level meter at -44 dBu input

Maximum Line Input Level: 0 dB on the Level meter at +10 dBu input

Output Level: Nominal Mic levels

Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)

Total Harmonic Distortion: Less than 0.01% @ 1kHz, -30dBu input

Signal to Noise Ratio: 85 dB @ 1 Khz, -30 dBu input

Gain: LO: 0 dB / HI: 20 dB

Phantom Power: Dual regulated 12 or 48-volt power supplies Current to 14 mA (direct short)

Level meter: -18 to +3 dB in 3 dB increments

Power Requirements: 9V alkaline or lithium battery

Battery Duration: 3 hours typical with alkaline battery (no phantom), 8 hours typical with lithium battery (no phantom)

Dimensions:  6 x 3.75 x 1.75" (155 x 98 x 64mm)

Weight: 21.1 oz (599g)
