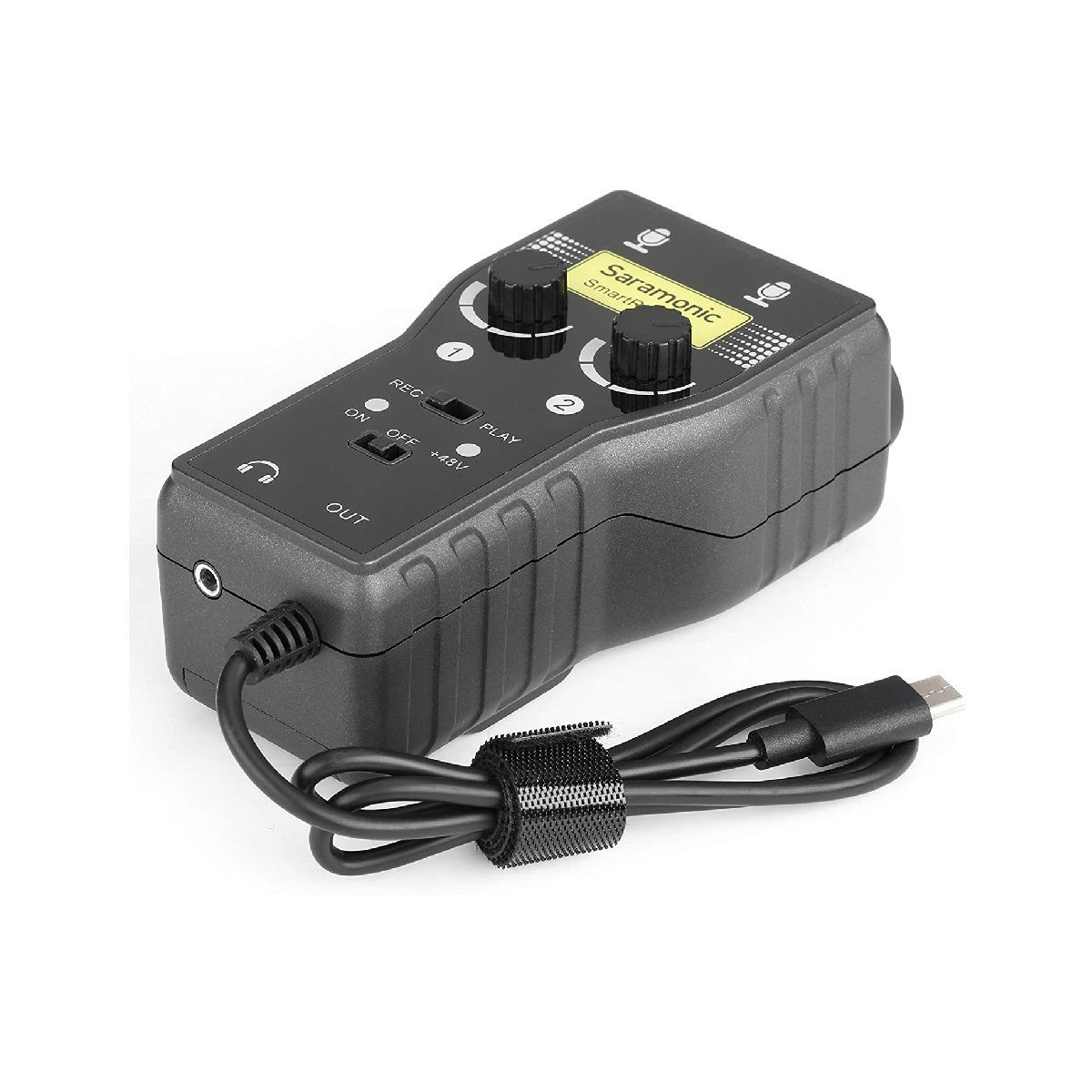

Name: Saramonic SmartRig+UC Two-Channel Audio Interface for USB Type-C Devices
Brand: Saramonic
SKU: SmartRig+ UC
Price: 11990.0000 INR
Availability: OutOfStock

Saramonic SmartRig+UC Two-Channel Audio Interface for USB Type-C Devices

Be the first to review this product

Price: ₹ 11,990

Old price: ₹ 12,075

Brands: Saramonic

SKU: SmartRig+ UC

Delivery date: 3-5 days

Availability: Out of stock

Chat with Expert Call Now

Saramonic SmartRig+UC Two-Channel Audio Interface for USB Type-C Devices

Products From Same Category

BOYA BY-MM1 Universal Cardiod Shotgun Microphone

₹ 1,489 ₹ 2,100

15 Cashback Points

Rode SC15 Lightning USB Type-C to Lightning Accessory Cable (11.8")

₹ 2,390 ₹ 2,149

24 Cashback Points

Rode SC3 3.5mm TRRS to TRS Cable Adaptor

₹ 1,130 ₹ 1,230

11 Cashback Points

Rode SC6 Dual TRRS Input and Headphone Output

₹ 1,299 ₹ 1,430

13 Cashback Points

Rode SC7 3.5mm Right-Angle TRS to 3.5mm Right-Angle TRRS Coiled Adapter Cable for Smartphone

₹ 1,229 ₹ 1,230

12 Cashback Points

Rode VideoMic Me Directional Mic

₹ 5,900 ₹ 6,700

59 Cashback Points

Rode VideoMic NTG Hybrid Analog/USB Camera-Mount Shotgun Microphone

₹ 25,990 ₹ 29,600

260 Cashback Points

Rode SC1 3.5mm TRRS Microphone Extension Cable

₹ 1,714 ₹ 1,900

17 Cashback Points

Boya BY-DM100 Professional Stereo Condenser Microphone for Android Devices with a USB Type-C Connector

₹ 3,799 ₹ 5,990

38 Cashback Points

BOYA BY-DM200 Plug-In Digital Cardioid Microphone for Lightning iOS Devices

₹ 3,499 ₹ 3,622

35 Cashback Points

Overview
Specifications
Reviews
In the box
From the Manufacture
More Info

Designed for people who require two inputs with little fuss, the Saramonic SmartRig+UC is an interface with a USB Type-C connection for compatible devices, such as computers, tablets, and smartphones. Inputs through two combination inputs outfitted for both XLR or 1/4" connections as well as two 3.5mm inputs for line-level sources are provided.

Two accessible gain knobs control the levels of each input. A mono/stereo switch controls the mode of operation, while a REC/PLAY switch is on hand to determine if you're in recording or playback mode. Monitoring is accomplished by means of the 3.5mm headphone output. Thanks to the unit's 9V battery, the SmartRig+UC can power two condenser microphones with selectable 48V phantom power. The SmartRig+UC also features a 3/8 thread on the rear of the unit to give you rigging options, as well as a strap.

Products specifications

Input Connector	USB C
Compatibility	Universal
Type	Direct Output Adapter
Brand	Saramonic

Write your own review Close Review Form

Product can be reviewed only after purchasing it
Only registered users can write reviews

Saramonic SmartRig+UC Two-Channel Audio Interface for USB Type-C Devices

Two Channel Audio Interface Saramonic SmartRig+UC

It allows you to connect professional microphones/guitars to record quality sound or create music with you USB Type-C device.

It provides +48V Phantom Power for microphone and 3.5mm headphone output for real-time monitoring. The two gain control thumbwheels make it easy to set levels of each channel separately.

Highlights:

TWO XLR mic inputs
Two 1/4(6.35mm)guitar inputs
Two 1/8(3.5mm)inputs
Mono/Stereo switch(M/S)
REC/PLAY switch
+48V phantom power
3.5mm headphone output for monitoring
Gain control
USB Type-c connector for output

Specifications:

Frequency Response: 20Hz to 20kHZ (+/-0.5dB)
Distortion: Less than 0.01% @ 1 kHz, -30dBu input
Signal to Noise Ratio: 80dB @ 1kHz, -30dBu input
Gain: +20dB to Infinity
Battery Requirement: One 9V Alkaline or Lithium
Dimensions & Weight: 4.7" x 1.6" x 1.6" (12 x 4 x 4 cm) 4.6 oz (130g)

Tips

Be careful not to turn the phantom power ON when recording with microphones that do not operate on phantom power, as the current may damage it
Please set the GAIN properly during recording Audio recording will be distorted if the GAIN is too high or too low
If you hear echoes when using high GAIN settings, please lower the device volume with the volume button
If you can't hear audio when monitoring, please make sure the applications you choose can support real-time input/output pass-through

Interface

Channels of I/O

Analog:
4 Inputs / 1 Output
Digital:
0 Input / 2 Outputs

Connectivity

Host Connection	1 x USB Type-C
Analog I/O	2 x Combo XLR / 1/4" Balanced Mic/Line Input 2 x 1/8" (3.5 mm) TRS Balanced Line Input 1 x 1/8" (3.5 mm) Unbalanced Headphone Output
Phantom Power	+48 V (Applied to All Inputs)
Digital I/O	None
MIDI I/O	None

Performance

Frequency Response	Interface: 20 Hz to 20 kHz ±0.5 dB
Gain Range	+20 dB
THD	Inputs: <0.01%
SNR	80 dB

Digital Audio

Sync Sources

None

Compatibility

Required Hardware

USB Cable (Not Included)

Power

Power Requirements	Battery
Battery Type	1 x 9V

Physical

Anti-Theft Features	None
Dimensions	4.72 x 1.57 x 1.57" / 120 x 40 x 40 mm
Weight	4.6 oz / 130.0 g
