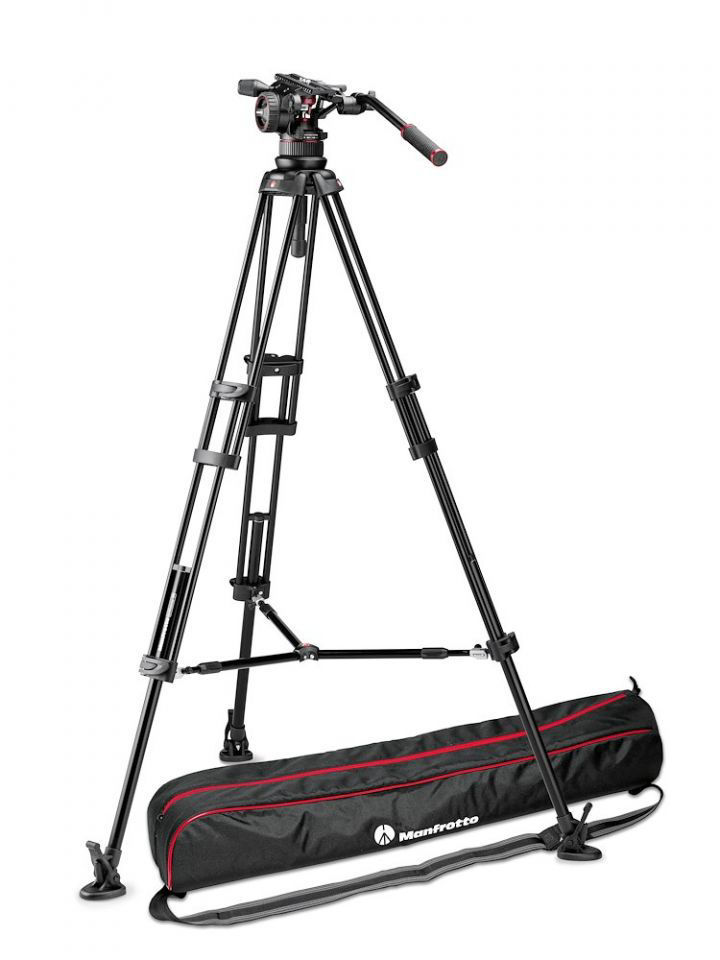

The video system includes the NITROTECH N12 fluid video head (flat base) and the 545B aluminium twin leg with middle spreader tripod.The NITROTECH N12 fluid video head features state-of-the-art technology consisting in a Nitrogen piston mechanism that allows continuous counterbalance system that enables precise control of a camera and accessories from 4 to 12 Kg @ 55mm C.O.G. .The variable fluidity function on both pan and tilt allows smooth, judder-free movement.It also features a 3/8” Easy Link equipped with an anti-rotation function that enables an external monitor or other accessories to be fitted.The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment.The NITROTECH head has a flat base mount with a standard 3/8” thread that is highly versatile for different support combinations (tripod, slider, jib or crane).The head attaches to the tripod thanks to a 100 mm half ball.specifically designed to fit the head. The 545B two-stage twin leg tripod is an extremely rigid solution featuring a telescopic middle spreader.Its leg locks are secure and reliable, and it is equipped with spiked feet with a rubber overshoe for solid grounding on both uneven terrain and smooth floors. The tripod can be used with a variety of Manfrotto dollies.Supplied with its own padded carrying bag.
no data
Weight
6.25 kg
Top Attachment
1/4″ screw, 3/8″ screw
Ball Flat
Flat
Safety Payload Weight
12 kg
Counterbalance System
Variable Continuous
Powered By (Batteries)
Lithium
Counterbalance Weight
4 → 12 kg
Base Diameter
75 mm
Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Carrying Bag Included
yes
Center Column
no centre column
Closed Length
89 cm
Colour
Black
Easy Link
Yes (with antirotation)
Front Tilt
-70° / +90°
Head Type
Video/Fluid Head
Leg Type
Twin
Leg Lock Type
Flip Lock
Legs Tube Diameter
16, 25 mm
Material
Aluminium
Maximum Height
170 cm
Maximum Working Temperature
50 °C
Min Height
46 cm
Minimum Working Temperature
-15 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGRL
Quick Release
Spreader
mid level - variable arm length
Tilt Drag
Accessory Compatibility
114MV; 181B; 165MV; MVAPANBARM; MVAPANBARL
