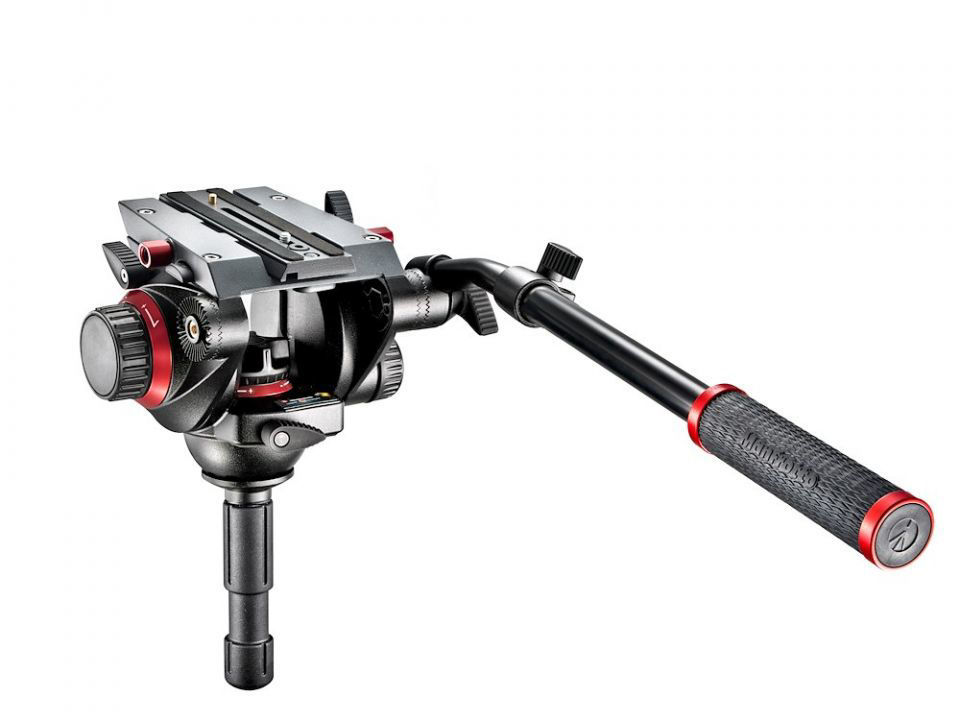

A perfect balance of design and performance, the Manfrotto 504 fluid video head with incorporated 75mm half ball puts you in control. This gives you the stability, strength and speed to suit any condition. The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto Head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement, which allows smooth shooting and a 4-steps counterbalance system up to 7,5 Kg at 55mm C.O.G. The head has a maximum payload of 12 Kg. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. Plus, levelling is simple thanks to the 75mm diameter half ball and backlit levelling bubble.
no data
Weight
2.77 kg
Top Attachment
1/4″ screw, 3/8″ screw
Ball Flat
75 Ball
Safety Payload Weight
12 kg
Counterbalance System
Variable Steps
Powered By (Batteries)
Lithium
Counterbalance Weight
0, 2.5, 5, 7.5 kg
Bubble Spirit Level (No.)
1
Center Of Gravity
55 mm
Certifications
WEEE; RoHS
Colour
Black
Easy Link
Yes
Front Tilt
-60° / +90°
Head Type
Video/Fluid Head
Material
Aluminium
Maximum Working Temperature
60 °C
Minimum Working Temperature
-20 °C
Pan Bar Included
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONG
Quick Release
Tilt Drag
Working Height
15.5 cm
