● Vertical balance adjustment lever with a built-in compass
The clamp with quick release of this gimbal head could be moved up or down through adjusting the vertical balance adjustment lever. Adjust the up or down displacement by locking the vertical balance adjustment lever in counter-clockwise direction while tighten the lock knob in clockwise direction is to fix the displacement.
●Tilt knob
When the mounting plate lock lever is locked, the quick release system could be adjustable for 360° by loosen the upper pivot bearing lock knob in counter-clockwise direction. Lock the quick release system by locking the tilt knob in clockwise direction.
● Horizontal balance adjustment lever
The base mount could be rotate 360°by loosening the panning lock knob in counter-clockwise direction. While locking the base mount by locking the panning lock knob is clockwise direction.

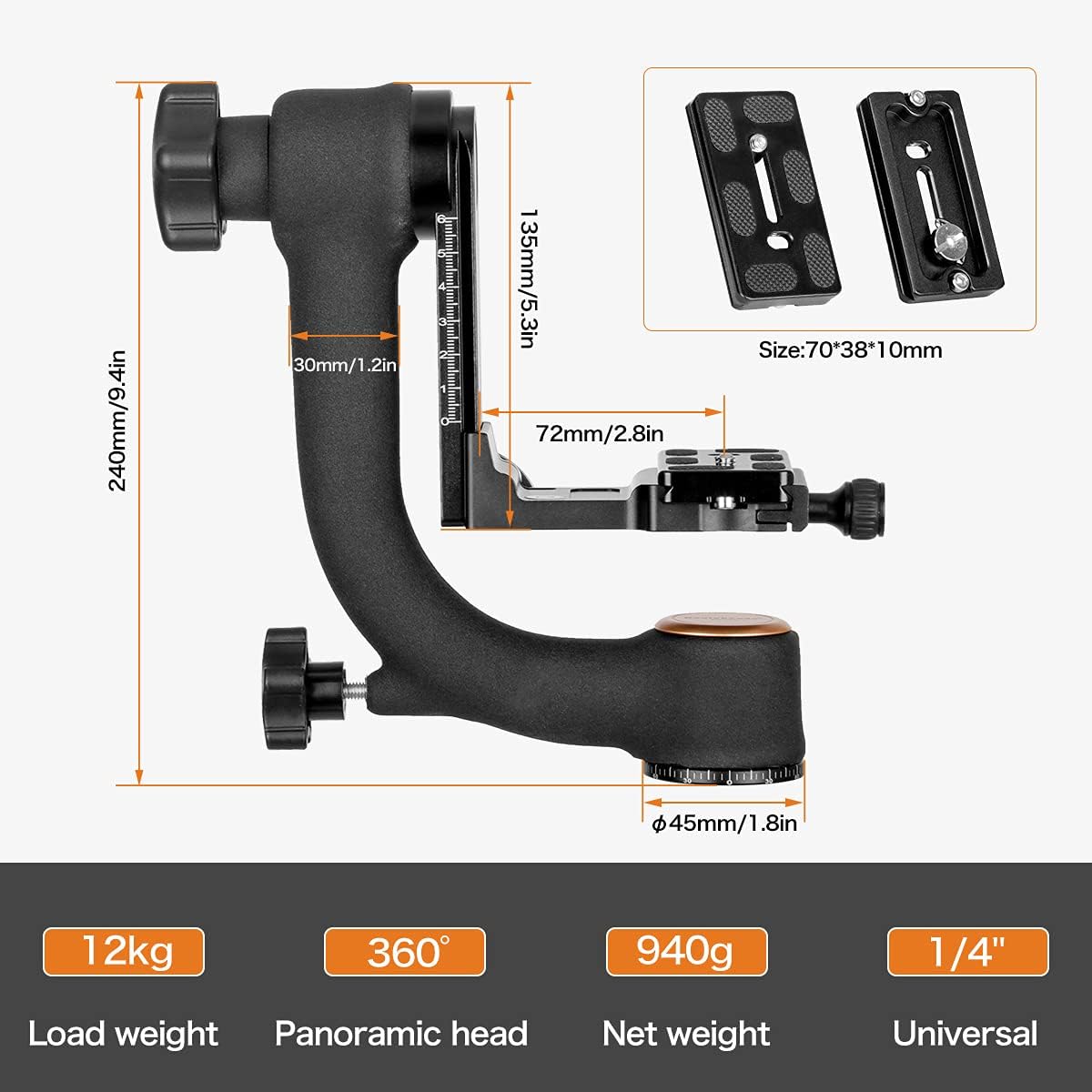

Specifications:
Material: Aluminium Alloy
Lock hole: 3/8"
Camera screw: 1/4"
Quick Release Plate size : 70*38*10mm
Dimension: 240*200*90mm
Base diameter: 45mm
Max. load: 12kg
Net weight: 1.2KG
Packing list:
1 X Q45 Gimbal Head with quick release plate
