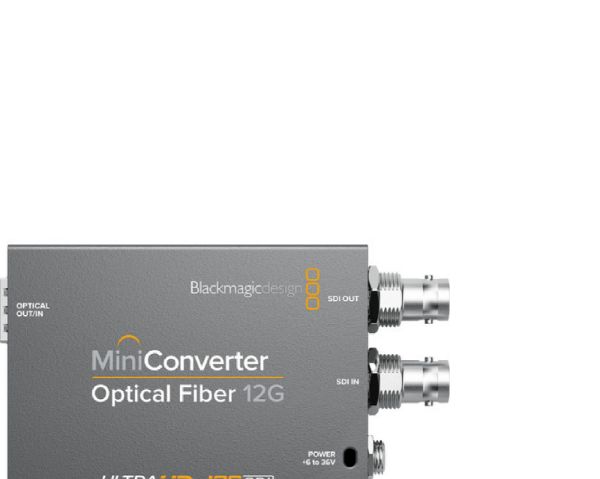

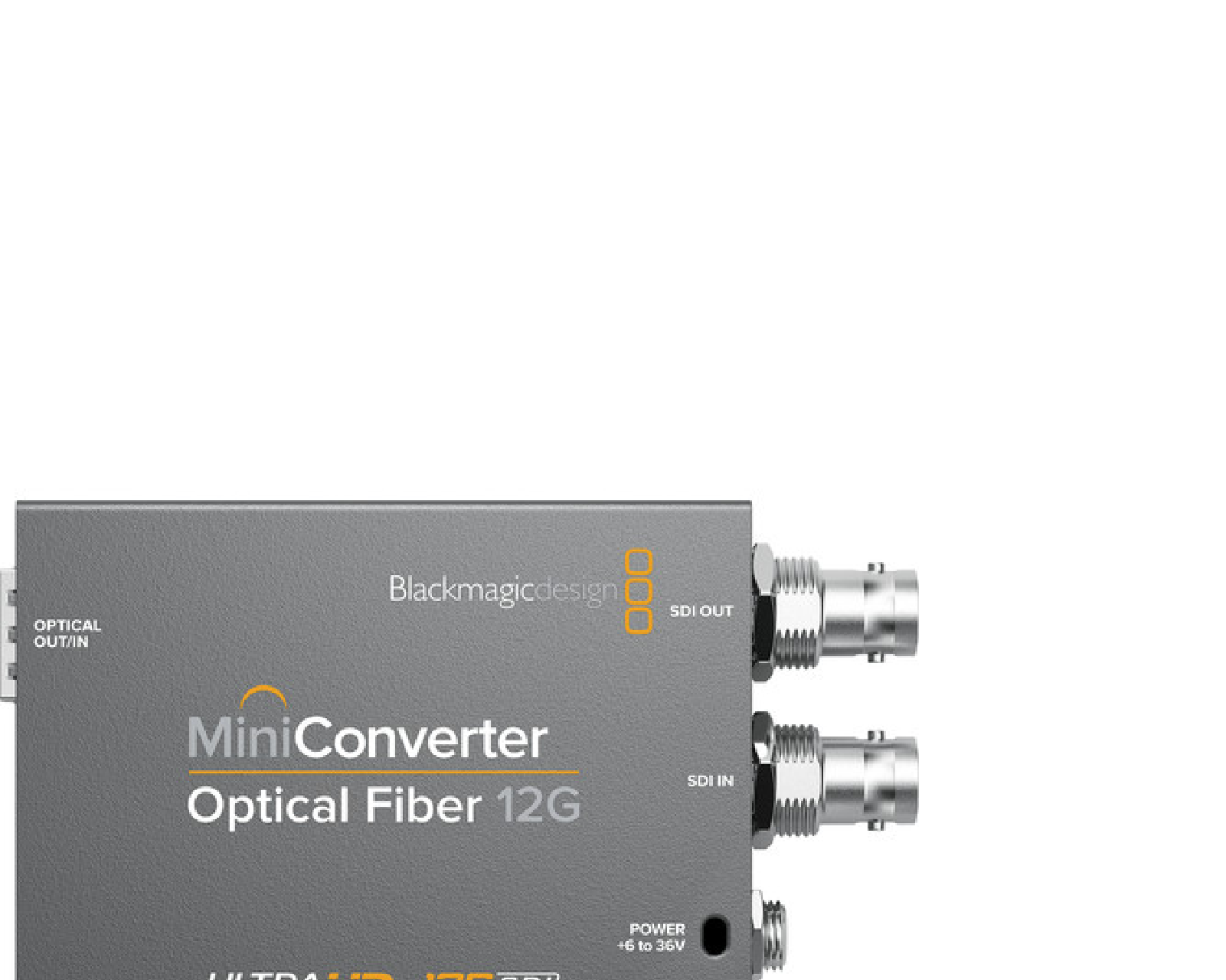

Blackmagic Mini converter optical fibre 12G

Blackmagic Mini converter optical fibre 12G

₹ 13,590
₹ 14,455
SKU: CONVMOF12G
Delivery date: 3-5 days
Availability: Out of stock
/safe-checkout-seal
Blackmagic Mini converter optical fibre 12G
.

BRAND NEW ITEM

.

GST INVOICE AVAILABLE

.

BRAND WARRANTY

.

CUSTOMER SUPPORT

.

Easy Returns & Exchanges

.

Authentic Products

.

100% Secure Payment

The Mini Converter Optical Fiber 12G from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.

Features include automatic signal detection and support for up to 16-channel embedded audio. Settings can be easily changed using the diagrammed function switches, or via the macOS/Windows-compatible converter software. This compact converter features a sturdy metal housing and includes a 12V universal power supply with a locking connection for added security.

Features

  • Bidirectional, multi-rate SDI to optical fiber conversion
  • Supports video signals up to DCI 4K25 and UHD 4K60
  • Automatic signal detection
  • Supports up to 16-channel embedded audio
  • Change settings with function switches or the macOS/Windows-compatible software
  • Universal power supply with locking connector
  • Rugged, compact metal housing
  • One SMPTE optical fiber SFP socket (requires separate module)
  • 12G/6G/3G-SDI input and output



Products specifications
Converts ToFiber
Converts FromFiber
BrandBlackmagic Design
Write your own review Close Review Form
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
  • Blackmagic Design Mini Converter Optical Fiber 12G



    • Universal Power Supply



    The Mini Converter Optical Fiber 12G from Blackmagic Design offers bidirectional, multi-rate SDI to optical fiber conversion capabilities with complete independence in each direction and support for up to DCI 4K25 and UHD 4K60 signals. This converter has one SFP optical fiber socket (requires a separate module), one 12G/HD/SD-SDI input, and one 12G/HD/SD-SDI output. With a 10-bit rate, you can take advantage of long fiber runs and compatibility with both studio and field HD-SDI and SD equipment.

    Input
    Video Input Connectors1 x BNC (12G-SDI)
    Input Video FormatSDI (4:4:4/4:2:2 RGB, YUV)
    DCI 4K: 23.98/24/25 fps
    UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    DCI 2K: 23.98/24/25 fps
    DCI 2KPsF: 23.98/24/25 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080PsF: 23.98/24/25/29.97/30 fps
    1080i: 50/59.94/60 fps
    Embedded Audio InputSDI: 16-Channel
    Output
    Video Output Connectors1 x BNC (12G-SDI / 3G-SDI / 6G-SDI)
    Output Video FormatSDI (10-Bit 4:4:4/4:2:2 RGB, YUV)
    DCI 4K: 23.98/24/25 fps
    UHD 4K: 23.98/24/25/29.97/30/50/59.94/60 fps
    DCI 2K: 23.98/24/25 fps
    DCI 2KPsF: 23.98/24/25 fps
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080PsF: 23.98/24/25/29.97/30 fps
    1080i: 50/59.94/60 fps
    Embedded Audio OutputSDI: 16-Channel
    Standards
    Video Standard ComplianceSMPTE 259M/292M/296M/297M/424M-B/425M/ST-2081
    ITU -R BT.601
    HDCP SupportNone
    Connectivity
    Expansion Slots1 x SFP Slot
    Power
    Power Connector1 x Barrel (6 to 36 VDC) Input
    Power ConsumptionPower Supply: 2 W
    Environmental
    Operating Temperature32 to 104°F / 0 to 40°C
    Storage Temperature-4 to 113°F / -20 to 45°C
    Operating Humidity0 to 90%
    General
    Dimensions4.33 x 2.32 x 0.9" / 109.98 x 58.93 x 22.86 mm
    Weight7.4 oz / 210 g
