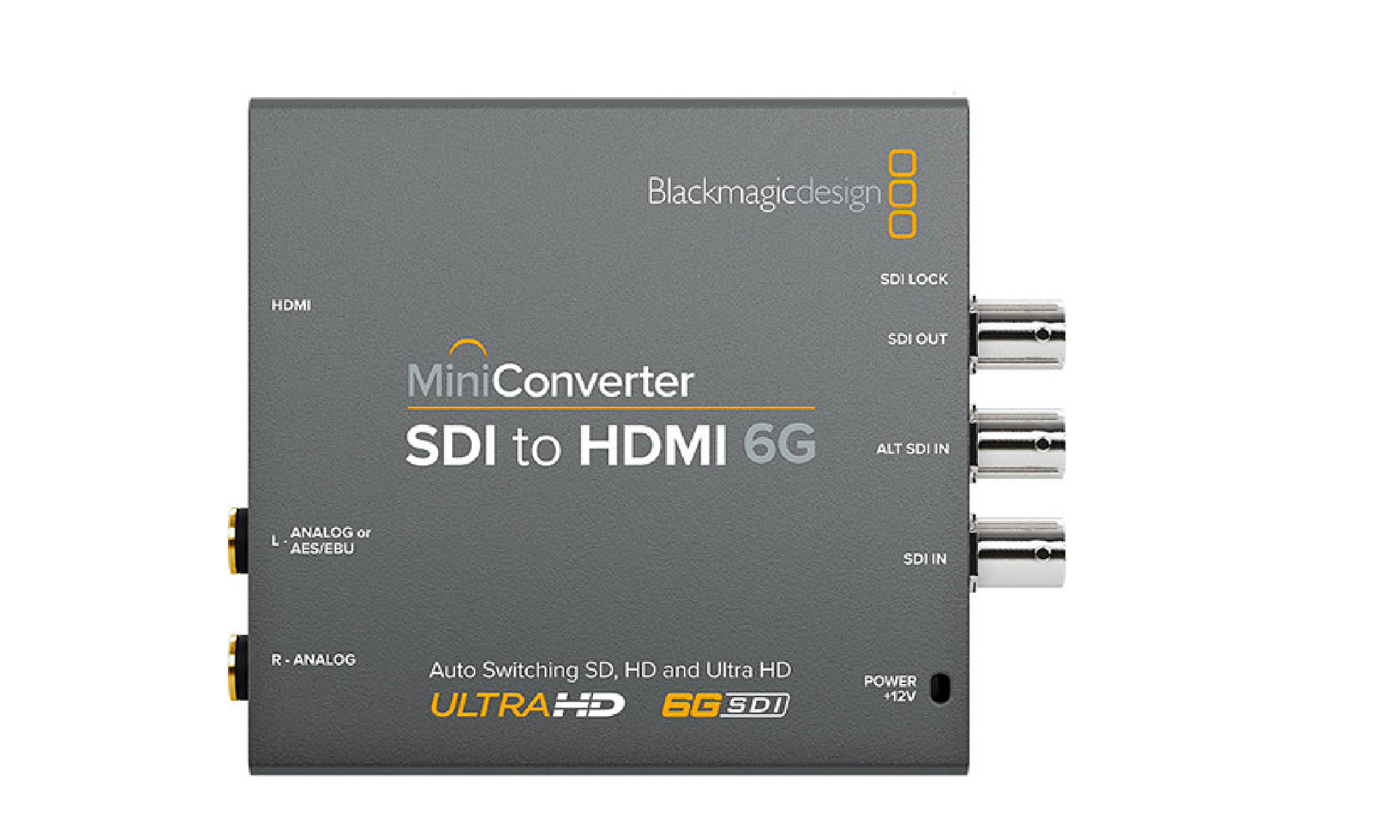

Blackmagic design: Mini converter SDI TO HDMI 6G(CONVMVSH4K6G)

Blackmagic design: Mini converter SDI TO HDMI 6G(CONVMVSH4K6G)

₹ 19,832
₹ 18,703
SKU: CONVMVSH4K6G
Delivery date: 3-5 days
Availability: Out of stock
/safe-checkout-seal
Blackmagic design: Mini converter SDI TO HDMI 6G(CONVMVSH4K6G)
.

BRAND NEW ITEM

.

GST INVOICE AVAILABLE

.

BRAND WARRANTY

.

CUSTOMER SUPPORT

.

Easy Returns & Exchanges

.

Authentic Products

.

100% Secure Payment

The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

Using 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly changes between SD, HD, and UHD/DCI 4K formats. Featuring two SDI inputs, and both an SDI and HDMI output, the unit will automatically switch from the main SDI input to the alternate input if the main input fails. Audio is de-embedded from the SDI input and available in the HDMI output as well as the AES/EBU or analog audio output.

The Mini Converter's settings are controlled using the built-in switches or via USB using the control software for Max OS X or Windows computers, which can be downloaded on Blackmagic Design's website. The USB port also enables the firmware to be updated.
The device is powered by an included 12V power supply and includes international socket adapters.

Additional Features

  • 4:2:2 Sampling and color precision
  • HD scaler and SD down-conversion
  • 24-bit, 48 kHz audio sampling
  • Compliant with SMPTE 259M, 292M, 296M, 372M, 424M, 425M Level A/B, and SMPTE ST-2081 standards
  • Down-conversion for monitoring Ultra HD on HD monitors
  • Built-in 3D LUTs
  • HDMI instant lock for instant video display when an SDI input is connected



Products specifications
BrandBlackmagic Design
Converts To4K/UHD
Converts From6G HD-SDI
Write your own review Close Review Form
  • Product can be reviewed only after purchasing it
  • Only registered users can write reviews
*
*
Bad
Excellent
  • Blackmagic Design SDI to HDMI 6G Mini Converter



    • 12V Power Supply with International Socket Adapters



    The Blackmagic Design SDI to HDMI 6G Mini Converter converts SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p to HDMI. This is useful for connecting consumer devices that require HDMI signals with professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.

    Video Input2 x 6G-SDI
    Video Output1 x HDMI type A
    1 x 6G-SDI
    Multi-Rate SupportAuto detection of SD, HD, or 4K signals
    ReclockingYes
    Audio OutputAnalog: 2 channels with 1 x 1/4" jack per channel
    AES/EBU: 4 channels with 1 x 1/4" jack
    Format SupportDCI 4K
    24p

    UHD 4K
    3840 x 2160p: 30/29.97/25/24/23.98

    HD
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    SD
    NTSC: 525i/59.94
    PAL: 625i/50
    SDI ComplianceSMPTE 259M/292M/296M/372M/424M/425M Level A or Level B/SMPTE ST-2081
    SDI Video RatesSDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.
    SDI Video Sampling4:2:2
    4:4:4
    SDI Color Precision4:2:2
    4:4:4
    SDI Color SpaceYUV
    RGB
    SDI Audio Sampling24-bit, 48 kHz
    SDI Auto SwitchingAutomatically detects SD, HD, or 6G-SDI
    HDMI Format SupportUHD 4K
    3840 x 2160p: 30/29.97/25/24/23.98

    HD
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    SD
    NTSC: 525i/59.94
    PAL: 625i/50
    HDMI Color SpaceYUV and RGB
    HDMI Color Precision4:2:2
    4:4:4
    Format ConversionHD down-conversion
    Settings ControlMini switches or USB software
    Firmware UpgradeableVia USB
    Power Supply12 VDC
    Power Consumption5.2 W
    Operational Voltage Range12 to 31 VDC
    Operating Temperature32 to 104°F / 0 to 40 °C
    Storage Temperature-4 to 113°F / -20 to 45 °C
    Relative Humidity0 to 90% non-condensing
    Dimensions4.49 x 3.63 x 0.90" / 11.40 x 9.22 x 2.29 cm
    Weight9.06 oz / 256.85 g
