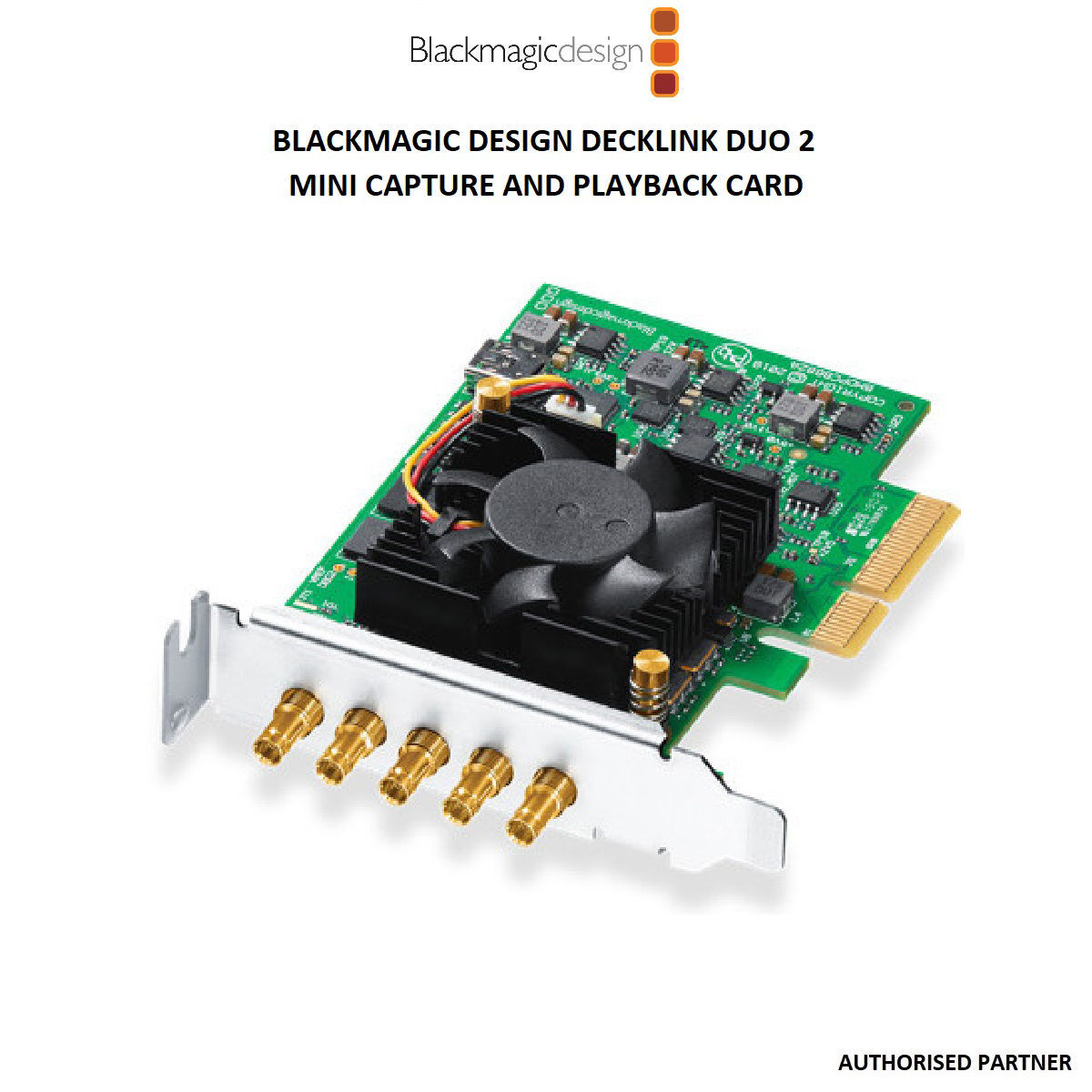

Name: Blackmagic Design DeckLink Duo 2 Mini Capture and Playback Card
Brand: Blackmagic Design
SKU: BDLKDUO2LP
Price: 46000.0000 INR
Availability: OutOfStock

Ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the DeckLink Duo 2 Mini Capture and Playback Card from Blackmagic Design. The Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.

The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.

Key Features

Low-profile PCIe capture/playback card compatible with macOS, Windows, and Linux-based workstations and servers
Up to 1080p60 capture/playback
8-/10-bit 4:2:2 in all modes up to 1080p30
12-bit 4:4:4 up to 1080p30 in playback mode
HD to SD downconversion
SD to HD upconversion
Hardware cross conversion between 720p and 1080p on playback
Rec. 601 and Rec. 709 color space
BNC reference input
Blackburst and tri-sync
Supports 16 channels of embedded 24-bit 48 kHz SDI audio in HD and SD resolutions

Software Applications Supported

Supports major software applications such as DaVinci Resolve, Fusion, Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, and Adobe Photoshop CC.

Other supported applications include The Foundry Nuke, Grass Valley EDIUS, Sony Catalyst Production Suite, Tools On Air Just: Play/Live/In, Softron MovieRecorder/MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro/Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X/Studio /Broadcast, Uniplay One/CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity/InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard/Coral CG, Glookast Capturer, Open Broadcaster Software Studio, and Nautilus NEMO3D.

Operating System	PC/Windows
Interface	PCIe
Brand	Blackmagic Design
Type	Capture Card

Supported Operating Systems	macOS 10.13, 10.14 or Later Windows 7, 8.1, 10 (All 64-Bit) Linux
Inputs/Outputs	4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD) 1 x Reference In
Sync Input	Tri-Sync or Black Burst
Computer Interface	PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
Audio Channels	16 x Embedded, HD and SD (Input and Output)
Video Support	HD: 1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF: 23.98, 24, 25, 29.97, 30 1080i: 50, 59.94, 60 720p: 50, 59.94, 60 SD: 525i: 59.94 NTSC 625i: 50 PAL
Audio Sample Rate	24-Bit, 48 kHz
Supported Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
Conversion Modes	Playback: 720p to 1080p, 1080p to 720p Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom) Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9) Color Space Conversion: Hardware-Based, Real-Time
Color Space	Rec. 601, Rec. 709
SDI Color Precision	8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Video Sampling	8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Metadata Support	RP 188/SMPTE 12M-2 and Closed Captioning
Power Consumption	10 W
Certifications	FCC, CE, and C-Tick
Operating Temperature	41 to 104°F / 5 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C
Relative Humidity (non-condensing)	0 to 90%
Length	3.9" / 9.9 cm, Low-Profile Form Factor
Weight	3.1 oz / 87 g
